Time-lapse ,Winter 2018 - M327 Haptic Devices with Allison Okamura Music: Little Green Men Rock and Roll by MyTwangyGuitar

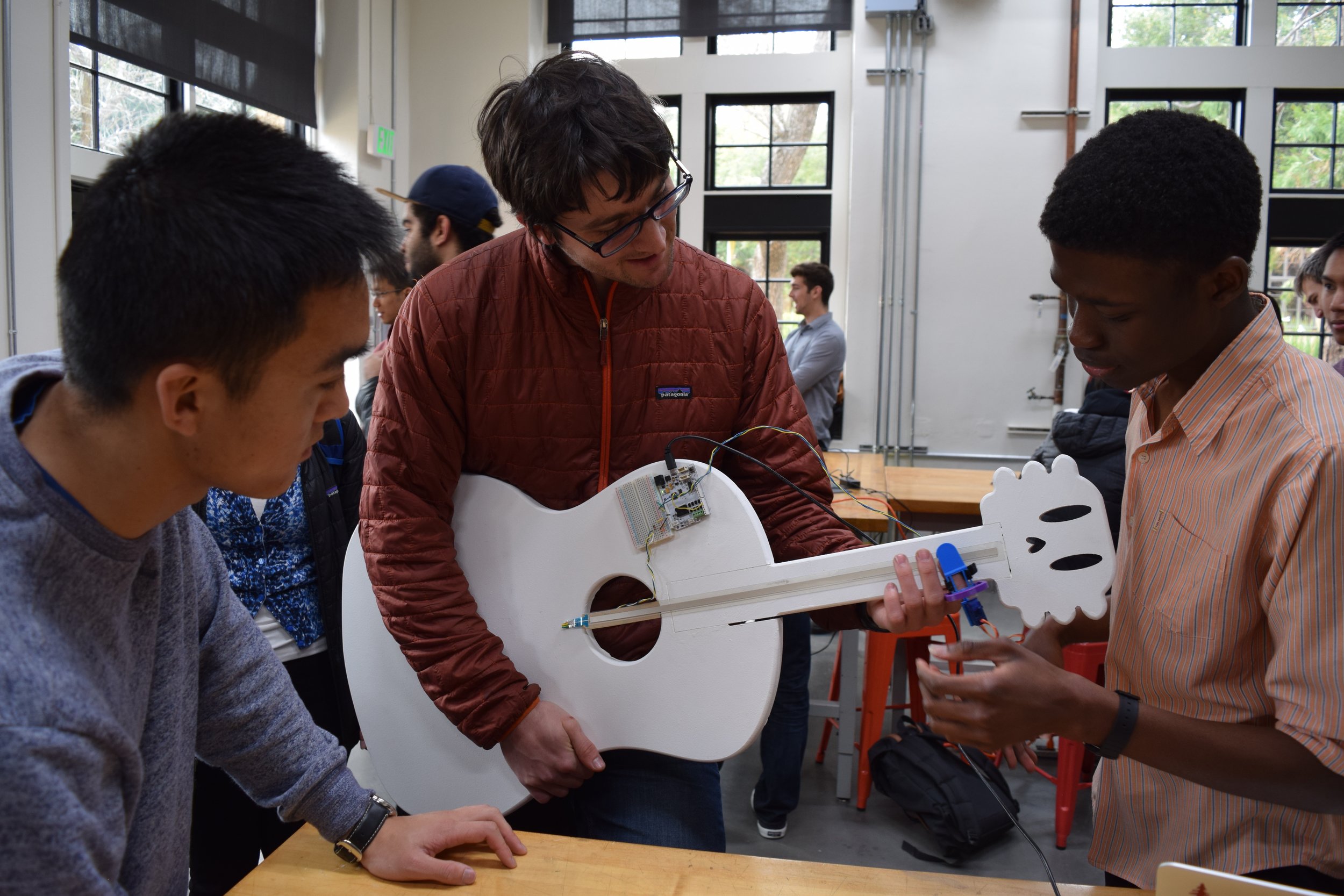

Haptic Feedback: User playing while using the haptic device’s “tugging” feeling to locate the correct note
About the setup:
The guitar is quick wood router prop we made to provide users with a physical instrument to interact without the risk breaking my violin
The potentiometer strip uses GarageBand and an Arduino to output sound based on the location pressed, in essence an electric guitar string
The 3D printed device worn on the finger uses a servo motor to “tap” the user in the direction needed to achieve the correct pitch
Visual Feedback: user looking at a digital tuning scale while playing
Close up of 3D printed haptic device
